EM Locks & Accessories

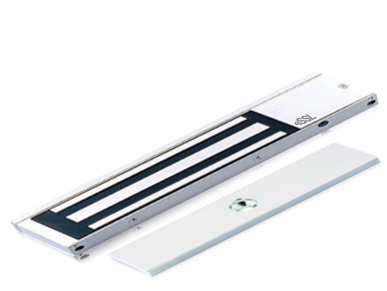

HC230GD- 600 Lbs LED Lock

Product Description

Codeum labs provides wide range of effective and reliable electro-magnetic locking solutions to fit into any application. electromagnetic lock is capable of holding doors weighing up to 600 lbs. Operates at low voltage at low current consumption rate.Carefully tested and approved by the engineering team to ensure the best security protection for the users.

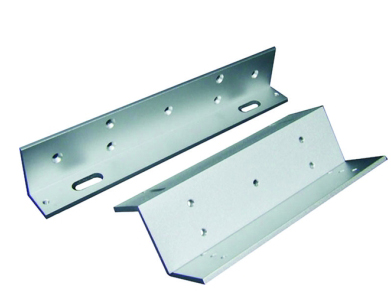

	Magnet(L X W X H ): 250 X 42 X 26 mm Armature Plate(L X W X H ): 180 X 38 X 11 mm Current Drawn :400 mA@12 VDC Low current consumption Holding Force : 230 Kg Temperature : 10°C - 55°C Operating Humidity : 0%-95% (Non-Condensing) Optional Accessories : L Bracket ,U Bracket ,ZL Bracket ,U Bracket for Glass Door

HI096-AF Bolt Lock Nornmal

Product Description

This kind of lock is fail-safe, and operates with DC 12 V. You can choose any time delay to avoid the bolt throw out before the door closing their are circuits for door and bolt sensor in the lock ,which guiding out for sensoring of the lock.

	Cutout(L X W): 212 X 35 mm Bracket(L X W X H ): 90 X 25 X 3 mm Current Draw : (Start)950mA ,(Standby)120mA Dual Voltage: DC 12 V Bolt : 15.5 mm diameter Stainless Steel ,Out throw 15 mm Net Weight : 0.9 Kg Holding Capacity : 600 lbs Temperature : 10°C - 55°C LED MAgneticbondsensor Optional Accessories : L Bracket ,U Bracket ,ZL Bracket ,U Bracket for Glass Door

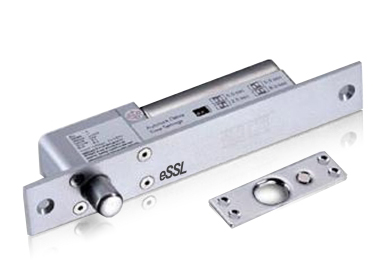

Bolt Lock Nornmal

Product Description

Essl safe electric bolt with magnetic features electromagnetic lock is capable of holding doors weighing up to 600lbs it also comes with indication device to monitor the status of the premises, whether it is opened or closed.

	Face Plate(L X W X H ): 205 X 35 X 40 mm Strike Plate(L X W X H ): 90 X 25 X 2 mm Cover Plate(L X W X H ): 215 X 40 X 0.7 mm Current Draw : (Start)950mA ,(Standby)120mA Dual Voltage: DC 12 V Bolt : 16 mm diameter , 16 mm Stainless Steel Net Weight : 0.8 Kg Holding Capacity : 600 lbs Temperature : 10°C - 55°C LED MAgneticbondsensor Optional Accessories :EL-BK-L600 L Bracket, EL-BK-U600 U Bracket, EL-BK-Z600 ZL Bracket

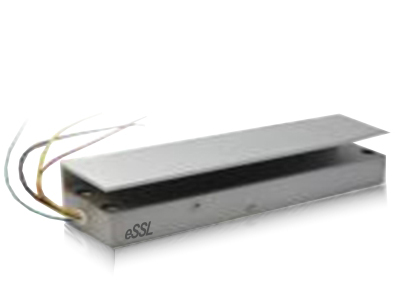

H1096AW-Glass Door EM Lock

Product Description

This is Wired Security Electric Door Lock for Frameless Glass, lock with electricity, magnetic induction, ball to fit position, low consumption, noiseless. Power to lock with signal output.

	Base Size(L X W X H ): 5.83 X 1.69 X 0.98 Inch Body Size(L X W X H ): 5.74 X 0.96 X 1.54 Inch Mounting Plate(L X W X H ): 250 X 25.4 X 6.3 mm Bolt Size : 0.49 diameter Inch Lock Delay : 0 ~ 6 Seconds adjustable Current : starting Current 1.3 A Working Voltage: DC 12 V Red Side : Positive electrode Black Side : Negative electrode Temperature : 10°C - 55°C Operating Humidity : 0%-95%

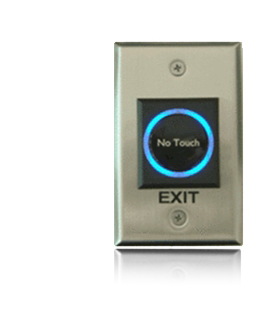

No Touch Exit Sensor

Product Description

Codeum labs no touch with unique design with LED indicators shall suit for high profile companies. This sensor uses contactless technologies for door release.

	Contact Rating : 3 A/AC 120 V, Dc 30 V Life : 5,00,000 lbs Temperature : 20°C - 55°C Weight : 85 g Optional Accessories : Gate ,Door ,Exit ,Automation Control

Exit switch/Button

Product Description

We offer many types door release, such as Plastic door release, Stainless steel push buttonl, Plastic Button and exit button.Panel with strongly style, applicable to hollow door . Stainless steel panel with strongly style, applicable to hollow door

	Max Current : 3A/36 VDC(No/NC) output Size (L X W): 91 X 28 mm Contact Rating : 3 A/AC 120 V, Dc 30 V

Bolt Lock Nornmal

Product Description

Safe electric bolt with magnetic features electromagnetic lock is capable of holding doors weighing up to 600lbs it also comes with indication device to monitor the status of the premises, whether it is opened or closed.

	Face Plate(L X W X H ): 205 X 35 X 40 mm Strike Plate(L X W X H ): 90 X 25 X 2 mm Cover Plate(L X W X H ): 215 X 40 X 0.7 mm Current Draw : (Start)950mA ,(Standby)120mA Dual Voltage: DC 12 V Bolt : 16 mm diameter , 16 mm Stainless Steel Net Weight : 0.8 Kg Holding Capacity : 600 lbs Temperature : 10°C - 55°C LED MAgneticbondsensor Optional Accessories :EL-BK-L600 L Bracket, EL-BK-U600 U Bracket, EL-BK-Z600 ZL Bracket
